An all-in-one biometric enrolment terminal that integrates multi-modal biometric functionalities such as Integrated Biometrics FAP 60, 10 finger (4-4-2) scanner, powerful 13MP + 5MP camera for iris and face recognition, NFC & IC ID card reader and MRZ scanner. The device supports certifications such as GMS, and the device is approved by NIMC for NIN Enrolments and Verifications in Nigeria. An ideal device for national population registration, citizen identification, SIM card registration, elections and border control.
Who
| Corporate: | Customer Enrolment, Customer Verification |
| Customer Verification Mobile Network Operator: | SIM Card Enrolment, SIM Swap, Customer Verification, Airtime Dispenser |
| Airtime Dispenser Law Enforcement: | ID Card Verification, mobility, police |
| Government: | Voter Card Verification |
| Health Care: | Patient Verification |
Key features
| Certification: | CE, GMS, NIMC, NCC |
| Android: | 10 and above |
| Display: | 10″ |
| Memory: | 2GB ROM + 16GB RAM (2GB ROM + 32GB RAM/4GB ROM + 64GB RAM Optional) |
| Processor: | Octa-core 2.0 GHz |
| Camera: | 13 MP autofocus with LED flashlight |
| Fingerprint Reader: | Kojak FAP60 |
| Optional: | Front Camera, Iris, Contactless Reader, Smart Card Reader |
| Contactless Reader: | 13.56 MHz NFC, ISO14442 Type A/B |
Specs
| Processor | Octa-core 2.0 GHz |
| Memory | 2GB RAM, 16GB Flash (2GB RAM, 32GB Flash or 4GB RAM, 64GB Flash Optional) |
| OS | Android 10 and above |
| Display | 10”, 1280*800 multi-point touch screen |
| SIM Slots | 1xMicro SD card / 2xMicro SIM Card / 2xSAM Card (Optional) |
| Communications | GSM/WCDMA/LTE-FDD/LTE-TDE |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac |
| Bluetooth | 5.0 BLE |
| GPS | GPS/A-GPS, GLONASS, BeiDou |
| Thermal Printer | Paper width 80mm. ZINK printer is optional |
| Memory Expansion Slot | Up to 128GB Micro SD Card |
| Peripheral Ports | 1xDC Charge / 1xMicro USB / 1×3.5mm Audio Jack / 2xUSB Host / 1xRJ45 |
| Audio | Digital Audio speaker |
| Power Supply | 12V, Supports external solar panel charging |
| Battery: Lithium Polymer rechargeable battery | 7.4V/10000mAh, removable battery |
| Rear Camera | 13MP auto focus with LED flash (Optional 5MP Camera with auto focus and LED flash) |
| NFC (Optional) | ISO14443 Type A/B, ISO18092 |
| Smart card reader (Optional) | ISO7816 |
| Iris (Optional) | Supported |
| MRZ Reader (Optional) | 1,2,3 MRZ lines for eID, ePP, ID2, CAN, IDL |
The Multimodal FAP-60 Fingerprint/Face/Iris SIM Registration Workstation
We are continuously seeing the convergence of SIM Registration and Biometrics and at Axon we are striving to provide our customers with the ultimate in accuracy, quality and price such as the, designed for purpose, Comet 60 device with built-in FAP-60, 4-4-2 Fingerprint reader.
About our product
This smart biometric workstation is designed specifically for SIM Registration and Citizen Identification projects and comes equipped with all the technology required to perform these tasks with an ergonomically designed, easy-to-use workstation.

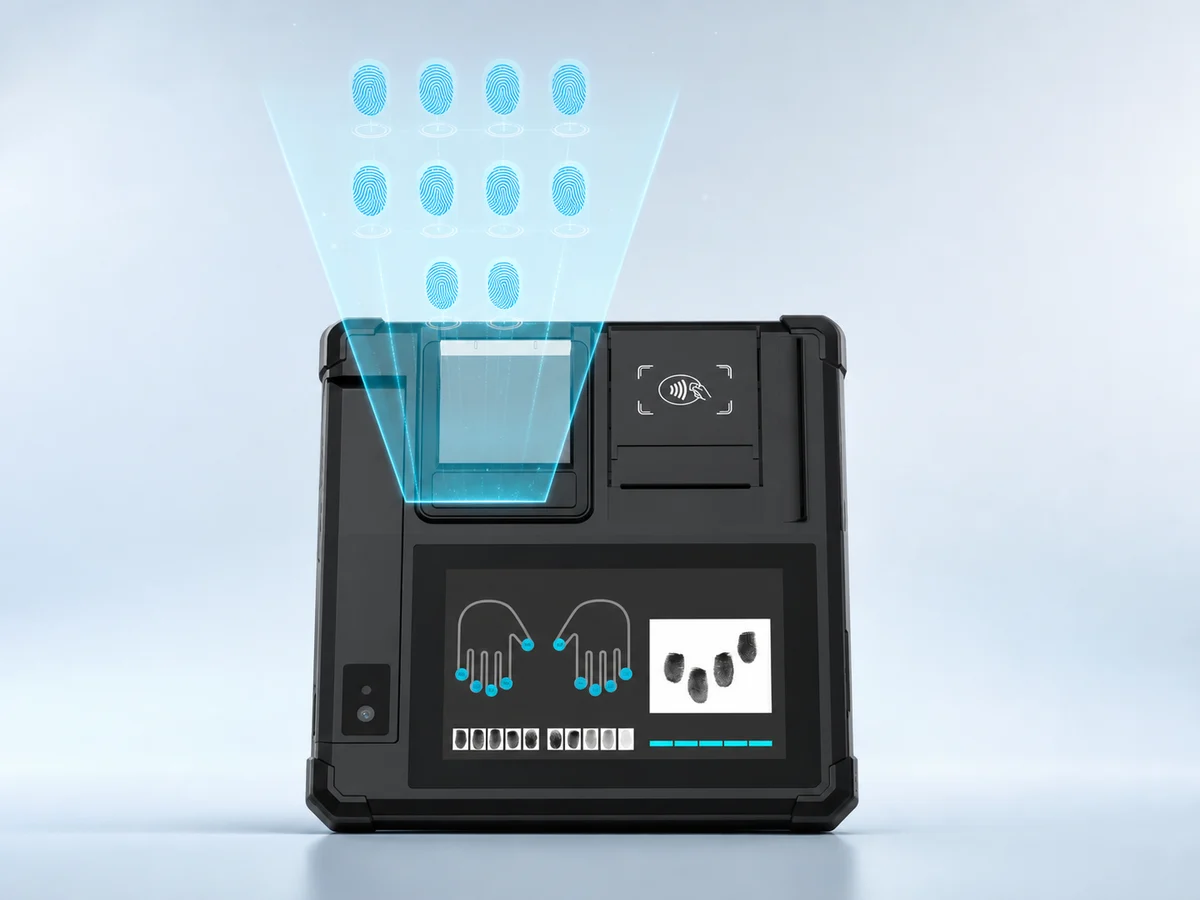

The Axon Comet 60 workstation makes registrations and enrolments accurate, efficient and saves time with the well-designed and light weight case that houses the FAP-60 Kojak Fingerprint reader, the de facto standard in 10 fingerprint (4-4-2) enrolment. The 10-inch multi-point touch screen provides a clear, high-resolution interface for the user.
Another major feature of the Comet 60 workstation is that it comes with Android 10 operating system that is GMS certified and also approved by the NCC for SIM registrations. This device is ideal for Civil registrations, SIM registrations, Voter registrations, National Population registers and Financial services too.
Comet 60 features

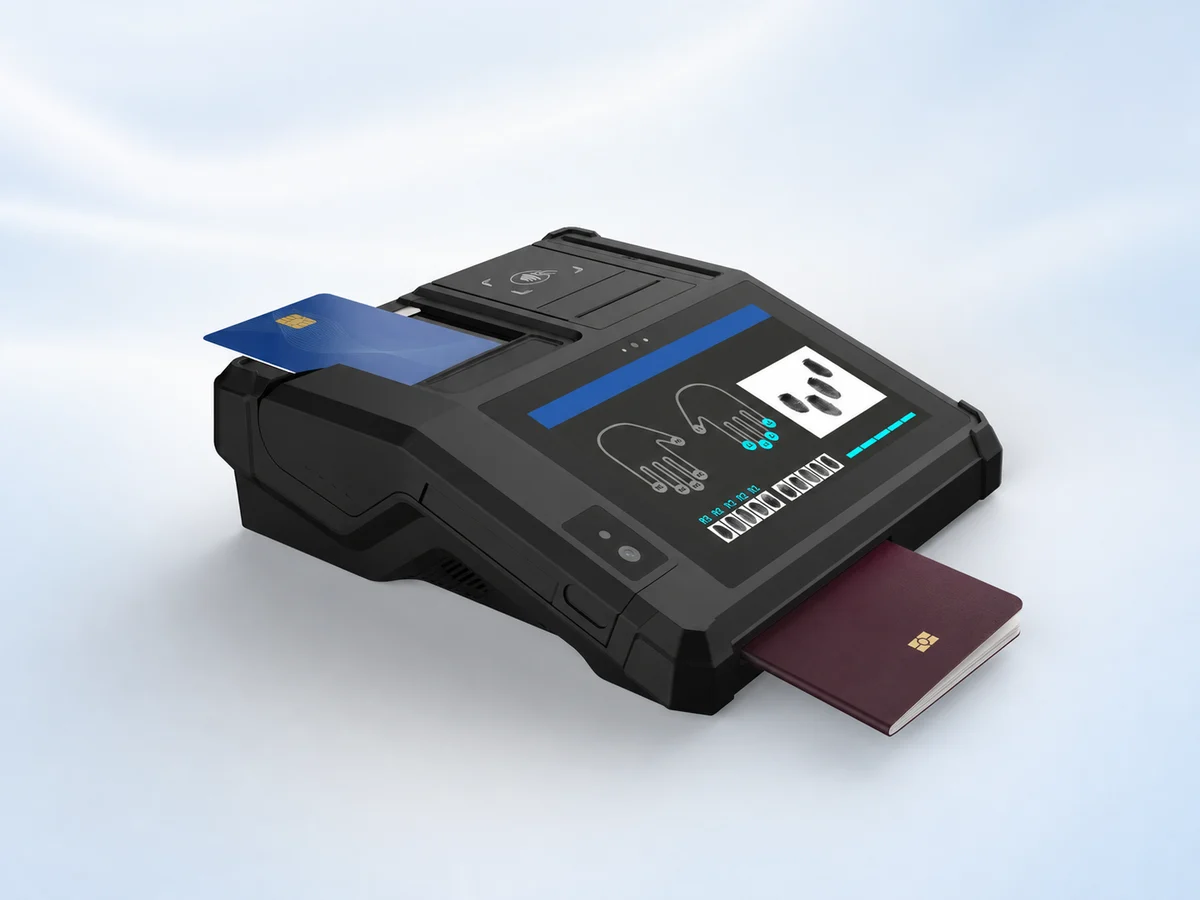

The tablet has a cast-in FAP-60 fingerprint reader as well as Contact and Contactless (NFC) ID card reading technology. This empowers the user to efficiently carry out their duties with government grade fingerprint enrolment.

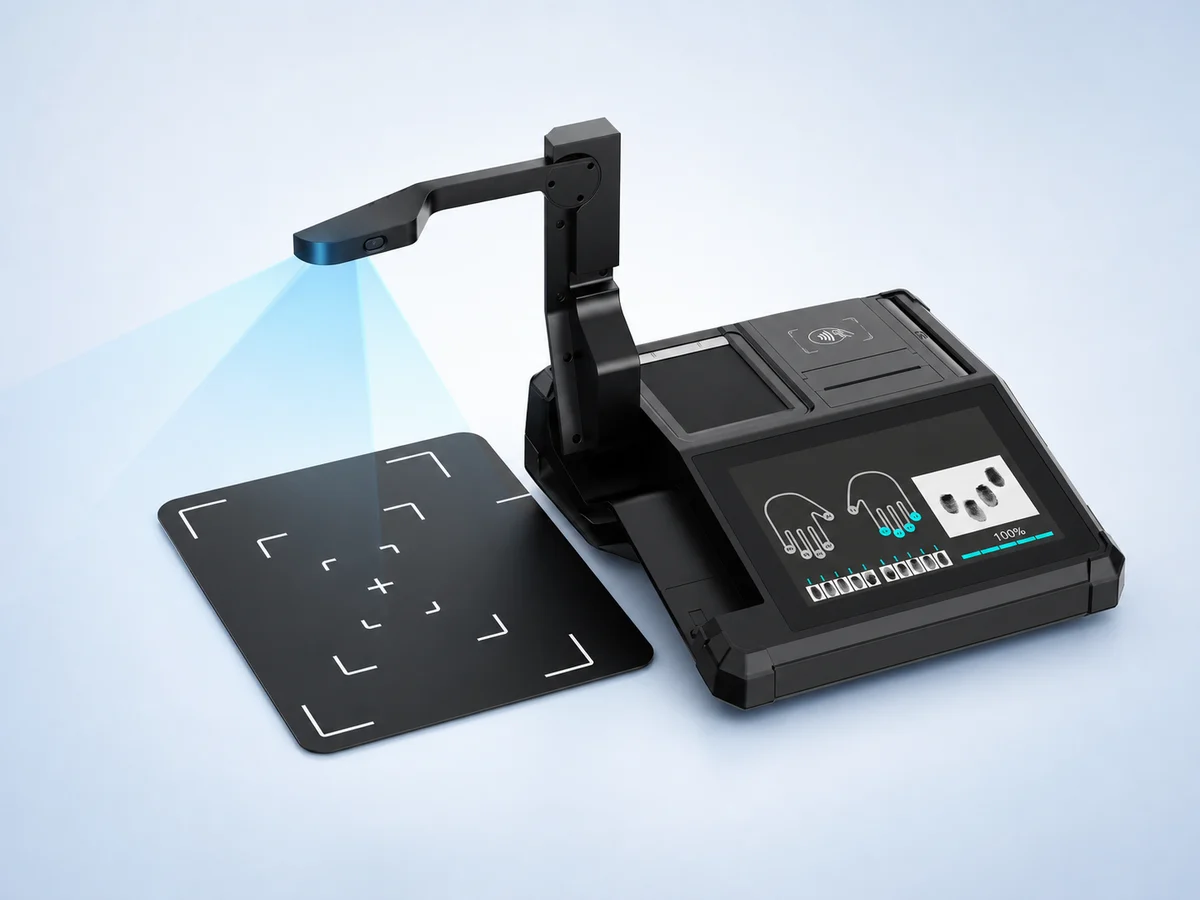

The Comet 60 device also comes equipped with powerful 13MP and 5MP cameras. The 13MP Primary Arm Camera can rotate 180 degrees to take photos of people at different heights while the 5MP front camera with dual flashes can be used for scanning codes and taking pictures. An optional Iris scanner can also be included. The 80mm printer can be used to print receipts of any identity registrations and provided to the customer immediately. A zink (Zero Ink) printer is an optional feature that can be used to print high-quality receipts to avoid fading.
For a larger device, designed as a workstation, it still only weighs 3.3kg and is ideal for enrolment and registration points nationwide. The large 10,000 mAh battery provides a full day of service and even supports solar charging while the expansion slot caters for 1 Micro SD card (128GB) and 2 Micro SIM cards to ensure sufficient storage and connectivity at all times.
A biometric registration workstation of this calibre requires excellent performance and that is delivered by the Octa-Core, 2.0 GHz processor with Android 10 and GMS certification that provides excellent security and efficient operational features.
Why should you have a biometric device?
Today requires strict control and measures while regulations become strict in enforcing the rules. This does call for a device that is tested and trusted in the environment of secure registrations and the Comet 60 matches all requirements.
High quality data going into the system in terms of Fingerprint, Face and textual data ensures the quality of the dataset to which we verify people against. This allows for accurate, fast and efficient verifications which aids in customer satisfaction but most importantly ensures high-quality and accurate data.
Once the data is collected, it will be quickly stored away from the device which means data cannot be stolen or removed.
To find out more about the biometric Comet 60 device that we have available, you can get in touch with the team at Axon Wireless.
